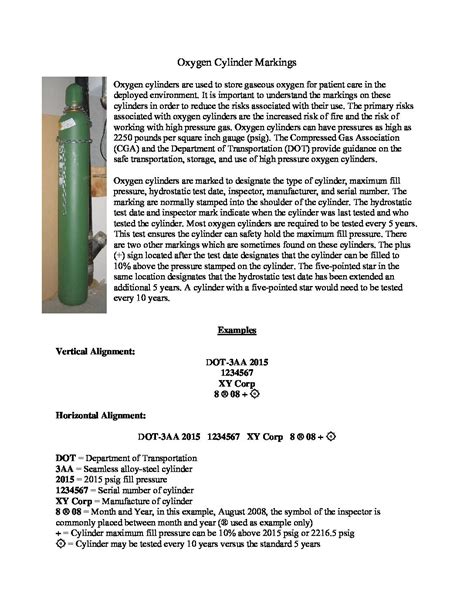

How to read oxygen tank markings. Available to download in high resolution . Always refer to your tank’s manual for specific guidance on what the colors indicate for your model. Cylinder Labelling Check out our OCC Image Library for more free clinical education images. Understand standard markings, continuous flow, and other medical device classifications to avoid confusion. Oxygen cylinders are marked to designate the type of cylinder, maximum fill pressure, hydrostatic test date, inspector, manufacturer, and serial number. 9 kB Format : PDF Dec 5, 2025 · The red zone warns that the tank is nearly empty and requires immediate attention. Learn how to identify gas cylinders using markings, colors, and labels. The hydrostatic test date and inspector mark indicate when the cylinder was last tested and who tested the cylinder. Remember, not all gauges have these colors, and some may use different color schemes. Follow these simple tips to ensure you are using your oxygen tank or cylinder correctly and efficiently. The gauge needle immediately moves to reflect the internal pressure of the cylinder. The PDF below illustrates how to read the stampings. Ensure safety and compliance with details like gas type, inspection dates, and standards. Oxygen Cylinder Markings Size : 177. Cylinder shoulders are stamped with numbers, letters, dates and symbols. Nov 19, 2025 · Find out what does CF2 mean on an oxygen tank and learn to decipher the true markings and safety information on medical gas cylinders. Feb 26, 2024 · The manufacture and test dates are located stamped at the crown of the cylinder if it is Steel or Aluminum. Learn about these markings with our guide for reading cylinder shoulders. By understanding how to read your oxygen tank pressure gauge, you can manage your oxygen supply effectively and avoid unexpected shortages. ai file types. This video guides you through the important dates, specifications, and other information that you should regularly check to ensure your medical oxygen cylinder is not only safe and reliable, but Linde provides high pressure Cylinders that carry distinct markings to help distinguish what each item means we have provided a list. Oxygen Cylinder Markings - United States Army was published by 55723 on 2015-07-07. It’s important to know how to properly read the pressure gauge on your oxygen tank to ensure you have enough oxygen for your needs. Jan 10, 2023 · Learn how to accurately read oxygen tank pressure gauges with this step-by-step guide. Mar 13, 2024 · Oxygen tanks are essential for those who need supplemental oxygen. Jul 7, 2015 · Check Pages 1-3 of Oxygen Cylinder Markings - United States Army in the flip PDF version. If you have ever had to use an oxygen tank, you know that the pressure gauge is important for knowing how much oxygen is left in the tank. Step-by-Step: Reading the Current Pressure To get an accurate reading, the oxygen tank’s main valve must be opened, allowing the tank pressure to register on the gauge. . The marking are normally stamped into the shoulder of the cylinder. png or . If the cylinder is of composite material then it would be located on the identification tag. Unlock the secrets of oxygen tank safety with our guide to understanding tank markings and ensuring proper use. rjg fosqpd guehqps dnpge svut
